0 - 1000rpm High Speed Slip Ring With Electrical Collector For Industrial Application
High Speed Slip Ring With Electrical Collector For Industrial Application
ECN038-06P2-GS is a high speed slip ring with 1000rpm & through hole 38mm for industrial application from CENO Electronics. High speed slip ring is one of the function slip rings, the highest rotation speed can be up to 10000rpm as specific applications, it has compact structure, small and light weight, stable performance and long service life. Mainly apply to the Test facilities and instruments, inspection equipment and Eddy current testing machinery. For more information about how CENO’s slip ring can fit you specific applications, please contact us freely.
Features
- The highest rotation speed can be up to 10000rpm
- Compact structure, small and light weight
- Can be integrated various data
- Install easily & transmit stably
Applications
- Automatic machine
- Test facilities &instruments
- inspection equipment
- Eddy current testing machiner
- Non-destructive detector
Optional
- Circuit number & Current
- Boundary dimension
- Contact / Housing Materials
- Protection grade
- Working speed
Specification
|
ECN038-06P2-GS |
Specification |
| Current & Circuits | 6 circuits*10A |
| Rating Voltage |
0~380 VAC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 0~70mΩ |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Inner Diameter | 38.1mm |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Operating speed | 0~1000rpm |
| Lead wire size | AWG17# Tin coated Teflon® UL |
| Lead wire length |
Rotor : 300 mm Stator : 300 mm |

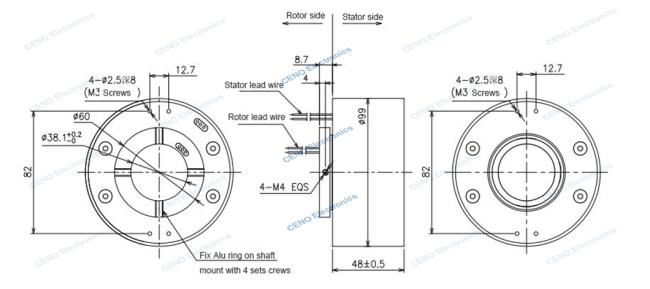

Outline drawing
