IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
Hollow Shaft Slip Ring With Through Hole ID35mm Electrical Collector
ECN035-12P is CENO’s new designed Through Hole Slip Ring with ID35mm and 12circuits for electrical collector for industrial automatic system. As a basic slip ring Through hole slip ring often combine kinds data and other signals to a integrated slip ring, such as compatible with Pneumatic Hydraulic Rotary Union, RF Rotary union, FORJ or other signal as the Ethernet, profi-bus, Encoder and HDMI etc. Through hole slip ring is more economical and working stably comparing with other integrated slip ring, Usually apply to the harsh environment, for more information about How CENO’s slip ring can fit your applications, please contact us.
Features
- Quiet mechanical system work
- Can be integrated different data, signals & Pneumatic/Hydraulic
- Stable performance, install easy
Applications
- Automatic machinery
- Electrical Crane
- Electric Winch
- Offshore Equipment
Optional
- Circuits & Current
- Contact / Housing Materials
- IP Grade
- Working speed
Specification
|
ECN035-12P |
Specification |
| Current & Circuits | 12 circuits * 6A |
| Rating Voltage |
0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 70mΩ (50rpm) |
| Contact material | Precious metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~300rpm |
| Lead wire size | AW22# Wire Teflon® UL |
|
Lead wire length |
Rotor : 1000mm Stator : 300mm |
| Inner diameter | Ø35mm |
| External diameter | Ø99mm |
| Rotation way | Fix rotor side on the main shaft with screws |

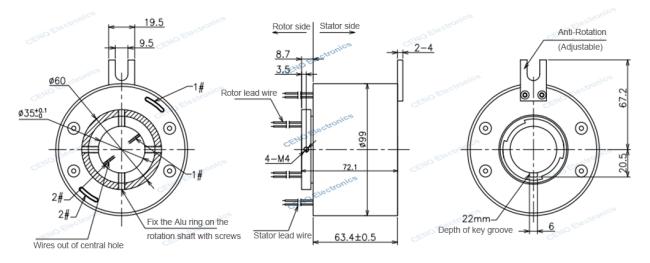

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
