ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector
ID25mm Through Hole Slip Ring with Electric Power Hollow Shaft Collector
ECN025-10P3-02S is CENO economical through hole slip ring which is designed for the automatic industrial system. CENO have six series products. One of them is Power Slip Ring, through hole slip ring as a basis and standard slip ring it has super stable performance, so it’s widely used on many kinds environments, such as the mine, offshore, wind turbine and polar range machinery. And easily integrated with other signals, data for modern information transmission systems. For more information about how CENO slip ring can fit your applications please contact us any time.
Features
- Basis design with through hole
- Stable performance and can be integrated kinds data and signals
- Economical & short deliver time
- Install easily & transmit stably
Applications
- Automatic machine
- Harsh environment
- Packing machinery
- Li-Ion Battery equipment
- Mine
Optional
- Circuit, Voltage, Current
- Integrated signals
- Contact / Housing Materials
- IP Grade
- Working speed
Specification
|
ECN025-10P3-02S |
Specification |
| Current & Circuits | 10circuis*15A; 1circuits*Signal |
| Rating Voltage | 0~240VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact material | Precious Metal / Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP50 |
| Operating speed | 0~300rpm |
| Lead wire size |
AWG14# Wire Teflon® UL K-Thermocouple cable |
| Lead wire length |
Rotor : 2000mm Stator : 5000mm |
| Inner Diameter | Ø25.4mm |
| External diameter | Ø86mm |
| Installation | Fix up stator side with anti-rotation side shaft drives rotor running |

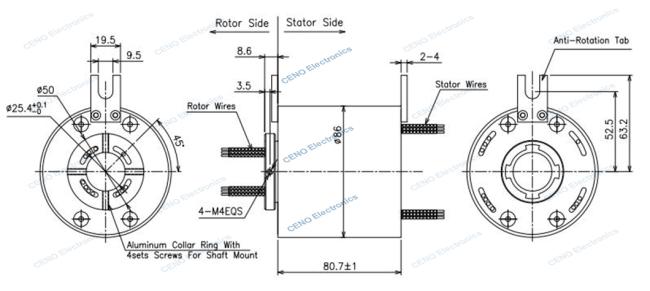

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
