Id 50mm Ip67 Waterproof Slip Ring With Rotary Electric Power Joints
IP67 Water Proof Function Electrical Slip Ring with Rotary Electric power joints
ECN050-18P-IP67 is CENO function water proof slip ring with through hole and inner diameter Ø50mm, which is designed for the environments high humidity , corrosion, even for the under water. The water proof slip ring can be designed to multiple protection grade as the different working environment as IP65, IP66, IP67 and IP68. It’s often applied to the marine engineering, ships, port and navigation equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.
Features
- IP65, IP66, IP67, IP68 is option
- Be able to bear high voltage
- Can integrated variety of signals
- Special Material & sealing forms
- Install easily & transmit stably
Applications
- Boats and ship
- Offshore equipment
- Marine equipment
- Filling machine
- Medical equipment
Optional
- Circuits, Voltage, Current
- Sealing forms
- Contact / Housing Materials
- Lead wire and size
- Working speed
Specification
|
ECN050-18P-IP67 |
Specification |
| Current & Circuits | 6circuits*10A; 6circuits*20A; 6circuits*30A |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave range | ≤30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material |
Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | ≤60%RH |
| Protection Grade | IP67 |
| Operating speed | 0~ 30 rpm |
| Lead wire size | Flexible rubber hose |
| Lead wire length | Rotor:500mm; Stator:500mm |
| Inner diameter | Ø50mm |
| External diameter | Ø135mm |
| Installation | Rotor side fixed on guest main shaft with screws |

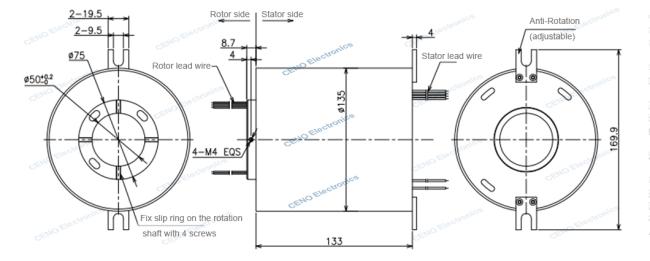

Outline Drawing
