Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector
Industrial Ethernet Signal Profinet Slip Ring combine Electrical Power Collector
ECN000-05P2-05S is CENO new customized profinet slip ring which is designed for medical equipment. Industrial Ethernet also called Profinet is an Ethernet technology used in the field of industrial control. It is technically compatible with commercial Ethernet, but the actual products and applications are completely different. CENO Profinet slip ring parameters can be designed as customer applications, 1000M Ethernet inner hole 0-1 20mm optional, 100M Ethernet inner hole 0-200mm optional. For more information about how CENO profinet slip ring can fit your specific applications please contact us.
Features
- High communication rate, even to support 1000Mbps
- Can be integrated and transfer power & other complex signals
- Various connector type available
Applications
- Automatic machine
- Mechanical equipment
- Power engineer machine
- Turntable test equipment
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signal types
- Contact / Housing Materials
- Protection grade
- Working speed
Specification
| Current & Circuits | 5 circuits * 10A; 1circuit * Profinet |
| Rating Voltage | 0~480 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz (P) |
| Isolation resistance | ≥500MΩ@500VDC (Electric) |
| Contact resistance | ≤30mΩ (50rpm) |
| Working Temperature | -20°C~+80°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~250 rpm |
| Contact material | Precious Metal; Gold to Gold |
| Housing material | Aluminium alloy |
| Lead wire size | 4core shielded wire; |
| Lead wire length | Rotor: 3000±100mm |

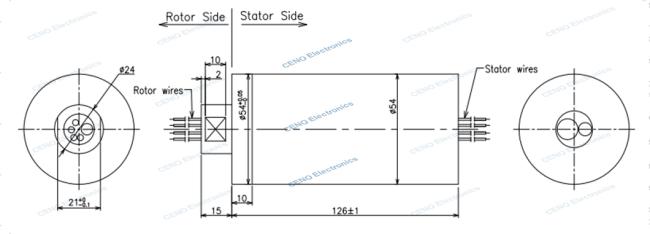

Outline drawing
