240v Thermocouple Signal Through Hole Slip Ring With Conductive Collector Ring
Through Hole Termo couple Signal Slip Ring with Conductive Collector Ring
ECN025-16P3-02S is CENO new through hole slip ring which combine conductive collector with thermo couple signals. It’s called Thermo couple signal slip ring also, this special slip ring solutions for thermo couples usually refer to special slip rings and electrical collectors that can stably and accurately transmit thermistor and thermocouple signals, with small temperature changes, perform stably and no jumps. CENO has many year experience in designing and produce thermo couple slip ring, for more information about how CENO slip ring can fit your applications please contact us.
Features
- Through hole design combine electric conductive with thermo couple slip ring
- Can be integrated various data
- Install easily & transmit stably
Applications
- CNC machinery
- Continuous casting & billet
- Temperature measure machine
- Tandem cold rolling mill
- Converter machine
Optional
- Circuit, Voltage, Current
- Signal and Data
- Contact / Housing Materials
- Protection Grade
- Working temperature
Specification
|
ECN025-16P3-02S |
Specification |
| Current & Circuits |
16 circuits*15A,1 group*Signal |
| Rating Voltage | 0~240 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact resistance | ≤30mΩ (50rpm) |
| Working Temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire size |
AWG14# Tin coated Teflon® UL K-Thermocouple cable |
| Lead wire length | Rotor: 2000mm; Stator: 5000mm |
| Inner Diameter | Ø25.4mm |

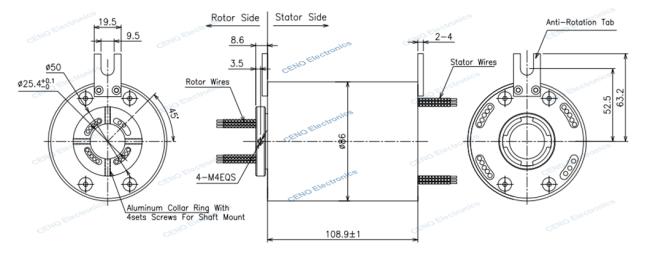

Outline Drawing
