K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
Product Description:
ECN140-20S-IP54 is a K type Thermo couple signal slip ring which is a customized slip ring too. In order to meet the requirement of equipment continuous rotating transmission of thermo couple signals, CENO design and develop a type of high precision slip ring to use and transmit thermo couple signals. Which have been successfully used in rotary furnace equipment, coating machine, heating shaft equipment, welding equipment and automatic turntables, etc. More information please contact us.
Features
- Thermo couple slip ring design with through hole 3-1000mm
- Stable and accurately transfer
- Can be integrated various data, signal or electric power
Applications
- Rotary furnace equipment
- Automatic turntables
- Packing equipment
- Welding equipment
- Medical equipment
Optional
- Circuit, Voltage, Current
- Inner / Outer Diameter
- Contact / Housing Materials
- Protection grade
- Working speed / temperature
Technical Parameters:
|
ECN140-20S-IP54 |
Specification |
| Current & Circuits | 10 Group *K type Thermo couple signal |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Stainless steel + Aluminum Alloy |
| Working temperature | -20°C~+80°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~10rpm |
| Inner diameter | Ø140mm |
| Lead wire size | K type Thermo couple wire |
| Lead wire length | Rotor : 300mm; Stator : 5000mm |

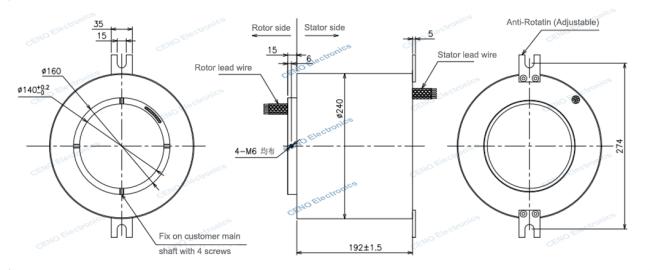

Outline drawing:
Support and Services:
We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.
Packing and Shipping:
Industrial Slip Ring Packaging and Shipping:
- The slip rings meet the requirements of the relevant international codes and standards.
- Slip rings are packed in wooden cases or metal boxes.
- Large packages are shipped by sea or air.
- Small packages are shipped by express.
- Each package is labeled with product name, model, size, quantity, origin, etc.
- The packages are inspected to ensure that the products are delivered in good condition.
FAQ:
Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
