IP65 Waterproof Slip Ring With 300rpm ＆ High Cost Performance For Industry
IP65 Water proof slip ring with 300rpm ＆ high cost performance for industry
ECN000-04P4-07P2-IP65 is CENO Water proof slip ring with IP65 and can be designed to IP68 for specific application, It’s suit for harsh and high humidity environment, such as the Marine scientific research, seabed exploration, offshore cable winches. We can provide and customize kinds of function slip rings by integrate electric power, RF, Fiber optic, Pneumatic/Hydraulic, signals as Ethernet, Encoder, Profi-net or HDMI etc, detail as special requirements. More information please contact us.
Features
- High voltage & IP65 IP67 & IP68
- Stable transmitting, no string code, low loss comply with EMC
- Can be integrated various data
- Install easy & Free maintenance
Applications
- Marine scientific research
- Seabed exploration
- Offshore cable winches
- Drilling equipment
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- IP Grade
- Working speed
Specification
|
ECN000-04P4-07P2-IP65 |
Specification |
| Current & Circuits |
4 circuits * 25A (400VAC) 7 circuits * 10A (400VAC) |
| Rating Voltage | 0-400VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~300rpm |
| Lead wire length | Rotor:1000mm; Stator:1000mm |
| Rotation Way | Flange installation |

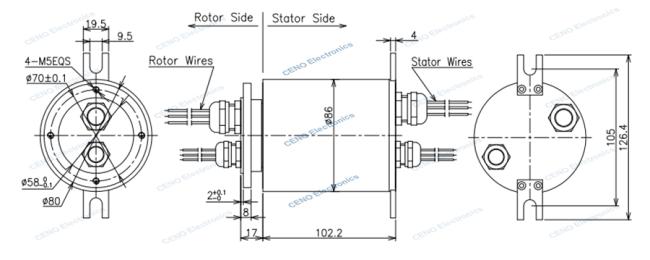

Outline Drawing
