300RPM 380V Electric Power Slip Ring With Through Hole Size 12.7mm
300RPM 380V Electric Power Slip Ring with Through Hole Size 12.7mm
ECN012-12P1 is CENO new high cost effective through hole slip ring designed for industry automatic system. CENO through hole slip ring adopt advanced fiber brush, multi-point contact, low friction and with long service life. Hollow shaft slip ring hole size from 3mm to 980mm are optional. As a classical slip ring it can be integrated with many kinds of signals or data to integrate slip ring Power Signal + Fiber Optic Rotary Joint, RF, Encoder or Pneumatic. For more information please contact us.
Specification
|
ECN012-12P1 |
Specification |
| Current & Circuits | 12circuits * 2A |
| Rating Voltage | 0-380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | 12.7mm |
| Lead wire size | AWG 24# Wire Teflon® UL |
| Lead wire length | Rotor : 300mm; Stator : 300mm |
| Rotation Way | Rotor side fixed on customer main shaft with screws |
Features
- Inner bore 3-1000mm option
- Current 1-10000A
- Circuits 1 - 300 circuits
- Protection IP41-IP68
- Can integrate with data / signals
Applications
- Turntable
- Testing machine
- Robot
- Motorize wheelchair
- Electrical engineering
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- High/Low temperature

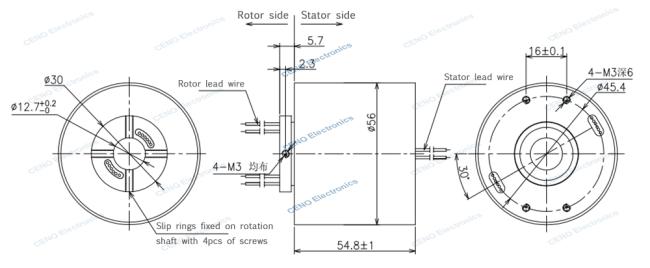

Outline Drawing
