6 Group K Type Thermocouple Signal Slip Ring With Through Bore 140mm For Industry
Product Description:
ECN140-12S-IP54 is CENO Large size K-type Thermo couple signal slip ring with through hole 140mm. CENO has extensive experience in thermocouple conductive slip ring production and has successfully developed and customized thousands of thermocouple conductive slip rings in the field of thermocouple signal conductive slip rings. The significant advantage is that it has a long service life and is not affected by changes in ambient temperature. For more information please contact us.
Features
- Through hole design and 3mm - 1000mm is optional
- High measurement accuracy
- Wide temperature measurement range and simple assembly
Applications
- CNC Machine
- Automatic feeding
- Tandem cold rolling mill
- Converter tilting equipment
- SMT Machine
Optional
- Circuit, Voltage, Current
- Inner bore size
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Technical Parameters:
|
ECN140-12S-IP54 |
Specification |
| Current & Circuits | 6 Group * K Thermo couple signal |
| Rating Voltage | 0-220VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+80°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~10rpm |
| Inner diameter | Ø140mm |
| Lead wire length | Rotor : 5000mm; Stator : 300mm |
| Rotation Way | Rotor side fixed on customer rotation shaft with screws |

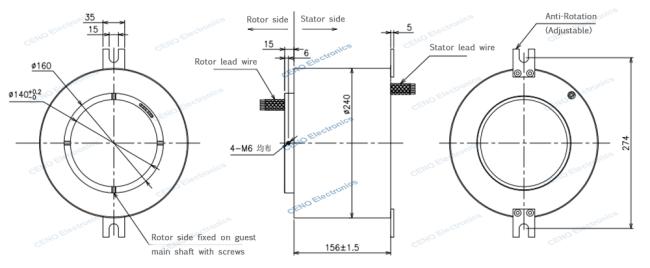

Outline drawing:
Support and Services:
We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.
Packing and Shipping:
Industrial Slip Ring Packaging and Shipping:
- The slip rings meet the requirements of the relevant international codes and standards.
- Slip rings are packed in wooden cases or metal boxes.
- Large packages are shipped by sea or air.
- Small packages are shipped by express.
- Each package is labeled with product name, model, size, quantity, origin, etc.
- The packages are inspected to ensure that the products are delivered in good condition.
FAQ:
Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
