High Current Copper Carbon Brush Slip Ring With 300A & High Voltage 690V For Marine
High Current Copper Carbon Brush Slip Ring with 300A & High Voltage 690V For Marine
BHCN-C-04300-0350-02P2-22S is CENO’s new Carbon Brush Slip Ring with high current 300A and high voltage 690VAC/VDC for marine machinery. Most of high-current conductive slip rings are customized slip rings, and designed for 360°infinite rotation connection of high-current and high-power power supplies or signals. Generally, the current is between 50A and 3000A, They are widely used in rotating worktables, cranes, electric winches, Industrial equipment fields. For more information please contact us.
Features
Copper carbon brush design and integrate power signal &Encoder
High current 300A up to 3000A
Binding post connect, easy to connect wires & high safety
Applications
Marine machinery
Turntable testing machine
Large radars
Welding robots
Large Cranes
Optional
Circuit, Voltage, Current
Brush material
Shape and dimension
Working temperature
Working speed
Specification
|
BHCN-C-04300-0350-02P2-22S |
Specification |
| Current & Circuits |
3 circuits * 300A (690V); 1 * PE; 3 * 50A (380V) (Stator); 2 circuits * 10A; 22 circuits * Signal (Rotor) |
| Rating Voltage |
0-690VAC/VDC (Stator) 0-220VAC/VDC (Rotor) |
| Dielectric strength |
≥1500VAC@60Hz (Stator) ≥1000VAC@50Hz (Rotor power) ≥1500VAC@60Hz (Rotor signal) |
| Isolation resistance |
≥500MΩ@500VDC (Stator) ≥500MΩ@300VDC (Power) ≥100MΩ@100VDC (Power) |
| Contact resistance |
≤10mΩ (50rpm) (Stator) ≤30mΩ (50rpm) (Rotor) |
| Contact material |
Copper Carbon Precious metal |
| Housing material | Q235A + RAL 7035 |
| Working temperature | -20°C~+60°C |
| Working humidity | 95 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~10rpm |
| Outer Dimension | 500*580*900mm |
| Other components | Transformer; Heater; Thermal control |
| Rotation method | Circuits rotating and brush keep state |

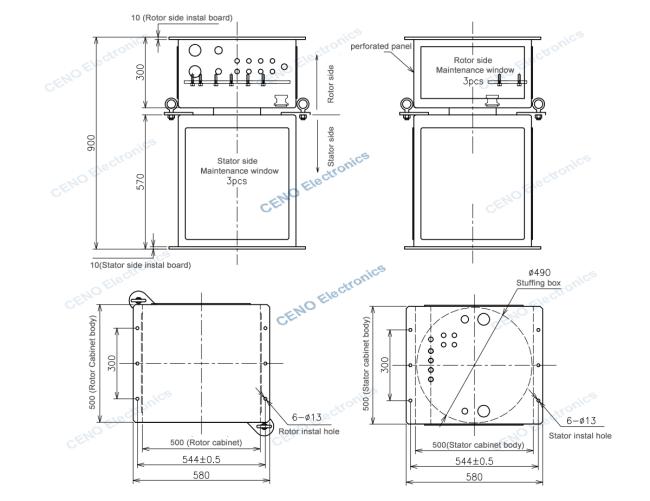

Outline Drawing
More information about ceno marine carbon brush slip rings
Application pictures
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
