Mini Slip Ring Capsule with 1A & 300Rpm For Drone or Medical equipment
Mini Slip Ring Capsule with 1A & 300Rpm For Drone or Medical equipment
CCN08-01 is CENO mini slip ring capsule with 1 circuit for 1A. CENO Mini slip ring is specially designed for small and medium-sized equipment, such as high speed dome camera, Intelligent toys, stage lights and drones. Most of the Mini slip rings transfer data, video signal, electrical power or other signals smoothly and stably from rotor side to the stator side. Flange or without flange installation for option, Compact structure design, easy installation. For more information please contact CENO expert team.
Features
- Small compact structure suits limit demanding space
- Military grade surface treatment, Gold to Gold contact
- Install easy & Free maintenance
Applications
- Drones
- Medical equipment
- Intelligence toys
- Sweeping robot
- Video monitoring
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- IP Grade
- Working temperature & Speed
Specification
|
CCN08-01 |
Specification |
| Current & Circuits | 1 circuit * 1A |
| Rating Voltage | 48VAC/VDC |
| Dielectric strength | ≥100VAC@50Hz |
| Isolation resistance | ≥10MΩ@100VDC |
| Contact material | Gold to Gold |
| Housing material | Stainless steel |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP40 |
| Operating speed | 0~300rpm |
| External diameter | Ø8mm |
| Lead wire | Rotor: 250±5mm; Stator: 250±5mm |

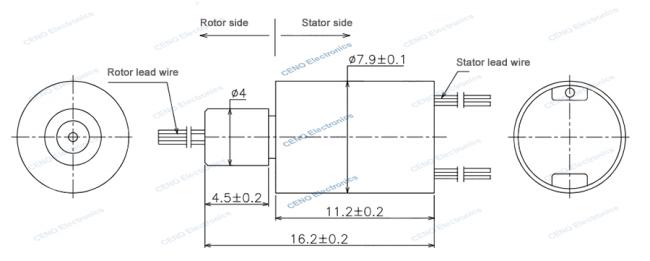

Outline drawing
Support and Services:
We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.
We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.
Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.
FAQ:
- Q1. What is CENO Capsule Slip Ring?
- A1. CENO Capsule Slip Ring, model number CCN-10J, is a rotary electrical connector, which can transmit power and signal from a stationary structure to a rotating one.
- Q2.Where is CENO Capsule Slip Ring made?
- A2. CENO Capsule Slip Ring is made in China.
- Q3.What certifications do CENO Capsule Slip Ring have?
- A3. CENO Capsule Slip Ring is certified by CE,RoHS,UL,ISO9001.
- Q4.What is the minimum order quantity of CENO Capsule Slip Ring?
- A4. The minimum order quantity of CENO Capsule Slip Ring is 1.
- Q5.What is the delivery time of CENO Capsule Slip Ring?
- A5. CENO Capsule Slip Ring is off the shelf and can be delivered quickly.
