4 Channels SM MM Fiber Optic Rotary Joint Slip Ring With FORJs For Robot
4 Channels SM MM Fiber Optic Rotary Joint Slip Ring with FORJs For Robot
ECN000-03100-05S-04F-GY-IP56 is CENO integrate FORJs slip ring which combined 2 channels Fiber Optic SM / MM, 3 circuits 100A Electric power with 5 circuits signal. And it works stably in temperature -34°C~+80°C. There are other 3 kinds of integrate slip rings except Integrate FORJs slip ring at CENO, they are Integrate Pneumatic/Hydraulic slip ring, Integrate Encoder slip ring and Integrate RF slip rings. Most of them are customized for special application. More information please contact us.
Features
- Integrate design combine electric power and FORJs
- High Voltage 5000VAC/VDC
- Can customize various data or signal as special application
Applications
- Material conveying system
- Rotating turret
- Remote control system
- National security system
- Video surveillance sytem
Optional
- Circuits, Voltage, Current
- Fiber type and channels
- Wavelength, insertion loss
- Cable length and connector
- Working speed
Specification
|
ECN000-03100-05S-04F-GY-IP56 |
Specification | |
| Current & Circuits |
3 circuits * 100A (5000V); 5 circuits * Signal (1000VDC) |
|
| Rating Voltage | 0-5000VAC/VDC | |
| Dielectric strength | ≥10000VAC@50Hz; ≥1500VAC@50Hz | |
| Isolation resistance | ≥1500MΩ@500VDC;≥1000MΩ@500VDC | |
| Contact resistance | ≤30mΩ (50rpm) | |
| Contact material | Precious Metal | |
| Housing material | Aluminum alloy + Stainless steel | |
| Working temperature | -34°C~+80°C | |
| Working humidity | 60 %RH | |
| IP protection grade | IP56 | |
| Operating speed | 0~100rpm | |
| Outer diameter | Ø180mm | |
| Lead wire size |
25mm2 high voltage lead wire; 5-cores shield wire |
|
| Lead wire length |
Rotor:1000mm with aviation plug Stator:1000mm with aviation plug |
|
| FORJs | Parameters | |
| Fiber type | SM | MM |
| Fiber channels | 2 | 2 |
| Wavelength | 1310/1550nm | 850/1300nm |
| Insertion Loss | <3.5dB | <4.5dB |
| Return Loss | ≥40dB | ≥30dB |
| Cable length | Rotor: 1000mm; Stator: 1000mm | |
| Connector | FC | |

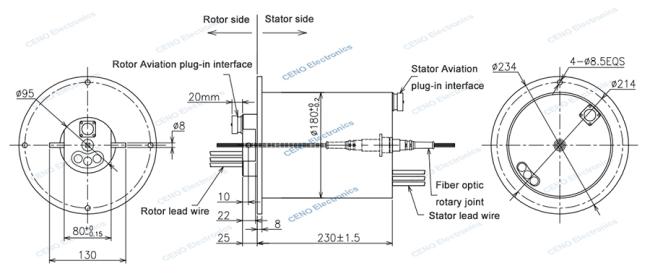

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
