Low Temperature Slip Ring with Through Hole ID38.1mm For Polar region crane
Low Temperature Slip Ring with Through Hole ID38.1mm For Polar region crane
ECN038-04P4-14S is CENO new function slip ring which can continuous rotating and transferring signal and electric power stably from stator side to rotor side within temperature -55°C~+60°C, we often call this kind of slip rings as low temperature slip ring at CENO. All materials are selected to ensure slip rings going well and keep high quality in a long time or many years. CENO have produce and customized slip ring for our customers nearly 5000 kinds, for more information please contact CENO experts.
Specification
|
ECN038-04P4-14S |
Specification |
| Current & Circuits | 4 circuits * 20A; 14 circuits * Signal |
| Rating Voltage | 0-380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | ≤70mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Working temperature | -55°C~+60°C; -55°C~+70°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~300rpm |
| Inner bore | Ø38.1mm |
| Outer diameter | Ø101mm |
| Lead wire size |
AWG17# Tin coated Teflon® UL AWG26# Tin coated Teflon® UL |
| Lead wire length | Rotor:400mm; Stator:400mm |
| Installation |
Rotor side fixed by screw holes Stator side fixed by ear mechanical parts |
Features
- High quality materials
- Optional circuits, and working temperature or speed
- Can be integrated various data
- Install easy & Free maintenance
Applications
- Military equipment
- Turntable testing machine
- Polar region crane
- Elevator
- Airborne equipment
Optional
- Circuit, Voltage, Current
- Shape and Dimensions
- Contact / Housing Materials
- Protection grade
- Working speed & temperature

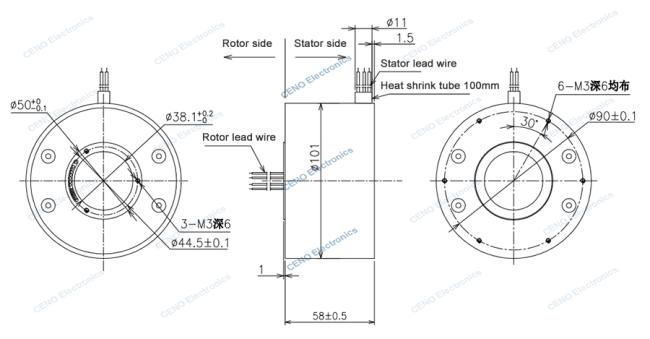

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
