Customized Slip Ring Combined Electric Power And Ethernet Signal For Robot Arm
Customized slip ring combined electric power and ethernet signal for robot arm
ECN000-03P3-11S-02EG is CENO one customized slip ring with circuits electric power, signal and Ethernet signals. Flat slot and flange design for easy and tight firm installation. Ethernet technology is the most commonly used network technology today, which provide GBPS of communication bandwidth for internet and communication systems, that realize low loss, no packet loss and ultra-long distance transmission with stable performance. For more information please contact us.
Features
- Combine Ethernet & Electric
- High stable performance and strong reliability & widely usage
- Can be integrated various data
- Install easy & Free maintenance
Applications
- Automatic equipment
- Communication system
- Intelligent housing system
- Industry robot arms
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed
Specification
|
ECN000-03P3-11S-02EG |
Specification |
| Current & Circuits | 3 circuits * 15A; 5 circuits * Signal; 3 circuits * RS422 Signal; 2 group * Gigabit Ethernet |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Electrical noise, max | 30mΩ (50rpm) |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| Protection Grade | IP51 |
| Operating speed | 0 ~ 100rpm |
| Outer diameter | Ø86mm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Lead wire size |
As customized |
| Lead wire length | As customized |

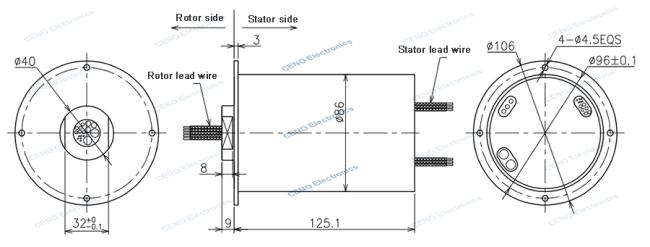

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
