ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.
Features
- Integrate design combine power signal and fiber optic rotary joint
- Low temperature design
- Can be integrated various data
- Install easy & Free maintenance
Applications
- Robotics
- Material conveying system
- Radar system
- Remote control system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Wave length & fiber type
- Contact / Housing Materials
- Structure and installation
- Working speed & temperature
Specification
ECN000-05P1-04S-01EG-01F | Specification |
| Current & Circuits | 5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 10mΩ |
| Working temperature | -40°C~+50°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire length | Rotor: 1000mm; Stator: 1000mm |
| Installation way | Flange installation |
| Fiber Optic | |
| Wave length | 1310/1550 |
| Insert loss | ＜2dB |
| Return loss | ＜30dB |
| Insertion loss deviation | ＜±0.5dB |
| Connector | FC |
| Cable length | Stator: 700±10mm; Rotor: 1100±15mm |

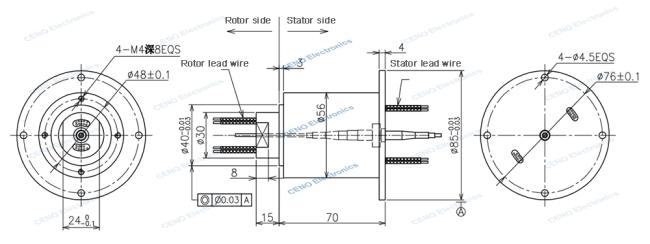

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
