Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm
Ethernet Signal Slip Ring with Electric Power for Industry Robotic Arm
ECN000-04P2-08S is CENO Ethernet signal slip ring with circuits electric power and signal for industry system. CENO’s Ethernet signal slip ring solutions have been developed to provide reliable product to allow transfer of the Ethernet protocol through a rotating interface. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application needs. For more information about how CENO slip ring can fit your equipment, please contact us.
Features
- Combine Ethernet & Electric
- Stable transmitting, no string code, low loss comply with EMC
- Can be integrated various data
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Intelligent housing system
- Filling machineryMedical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed
Specification
|
ECN000-04P2-08S |
Specification |
| Current & Circuits | 4 circuits * 10A; 4circuits * 2A; 4circuits *Signal |
| Rating Voltage | 0 ~ 480 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥50MΩ@500VDC; ≥10MΩ@300VDC |
| Contact resistance wave | ≤ 20mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~60rpm |
| Outer diameter | Ø86mm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire length | As customized |
| Installation way | As customized |

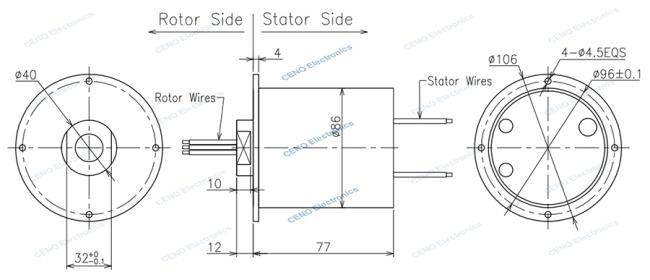

Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
