ECN000-24P1-03F is CENO integrate slip ring, the core feature of this slip ring is that integrate 24 circuits electric power and 3 channels of fiber optic rotary joints into one same rotating sleeve, realizing the synchronous, continuous, 360-degree unlimited rotation transmission of electrical energy and fiber optical signals. This is a highly integrated rotary connection solution that combines the functions of traditional electrical slip rings and fiber optic slip ring. More information please contact us.
Features
- Integration,high performance,high reliability, transmits multiple media, eliminating cable winding issues
- Integrate kinds data, signal and electric power & install easy
Applications
- Automatic machine
- Aircraft models
- Radar systems
- Industrial robots
- Maritime&aerospace platforms
Optional
- Circuit, Voltage, Current
- Fiber type & Wave length
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-24P1-03F | Specification | ||
| Current & Circuits | 24 circuits * 5A | ||
| Rating Voltage | 24 VAC/DC | ||
| Dielectric strength | ≥300VAC@50Hz | ||
| Isolation resistance | ≥500MΩ@500VDC | ||
| Contact resistance wave | ≤ 30mΩ | ||
| Working temperature | -20°C~+60°C | ||
| Working humidity | 60 %RH | ||
| IP protection grade | IP51 | ||
| Operating speed | 0~300rpm | ||
| Outer diameter | Ø86mm | ||
| Contact material | Precious Metal | ||
| Housing material | Aluminum Alloy | ||
| Lead wire size | As customized | ||
| Lead wire length | As customized | ||
| Fiber Optic Rotary Joint | |||
| Fiber type | SM | MM(50/125um) | MM(62.5/125um) |
| Fiber channel | 1 | 1 | 1 |
| Wavelength | 1310/1550nm | 850/1300nm | 850/1300nm |
| Insertion loss, max | 3.5dB | 3.5dB | 3.5dB |
| Return loss, min | 40dB | 25dB | 25dB |
| Lead wire length | As customized | ||
| Connector | SC / APC | ||

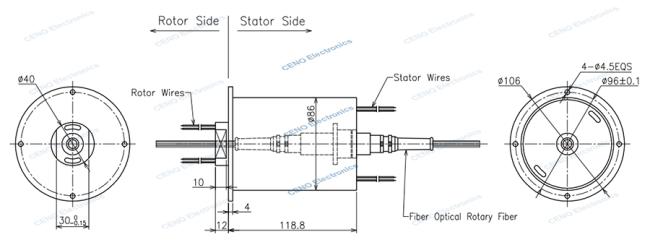

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
