ACN-04P2-11S-02HD is CENO low temperature capsule slip ring with circuits electric power and 2 circuits SDI signal, that can be equipped in the machinery working in low temperature from -30°C to +60°C. The core goal of HD-SDI is high-quality, stable, long-distance video signal transmission in professional broadcast and film and television production environments. It is designed to connect professional equipment such as cameras, switchers, recorders, matrices, monitors, etc., requiring extremely high reliability and anti-interference capabilities. More information please contact us.
Features
- Support video standards up to 2K @ 90Hz, No flash screen no frame loss
- Compact structure can combine kinds data, signal and electric power
- Install easy & Free maintenance
Applications
- Automatic machine
- Aircraft models
- Cable equipment
- Special vehicles and ships
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ACN-04P2-11S-02HD | Specification |
| Current & Circuits | 2 * 3G-SDI Signal; 9 * signal; 2 * 150W.24V; 2 * Electrical |
| Rating Voltage | 240V AC/DC |
| Dielectric strength | ≥500VAC@50Hz; ≥100VAC@50Hz |
| Isolation resistance | ≥100MΩ@200VDC; ≥10MΩ@100VDC |
| Contact resistance wave | ≤ 35mΩ |
| Working temperature | -30°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø22mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size | As customized |
| Lead wire length | As customized |

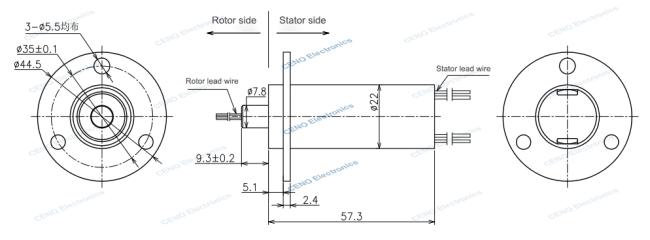

Outline Drawing
