K-type thermocouple slip rings with electric power and HD for Industry
K-type thermocouple slip rings with electric power and HD for Industry
ECN000-02P2-02S-01HD is CENO K-type thermocouple slip ring combine electric power and HD signal, which uses special materials, structures and shielding technology to ensure high fidelity and low loss of millivolt signals during transmission. The K-type thermocouple slip ring is a precision electrical contact component designed specifically for transmitting thermocouple signals in rotating equipment. Its core task is to solve the problem of continuous and reliable transmission of weak millivolt (mV) temperature difference electrical signals between rotating and stationary parts. More information please contact us.
Specification
| ECN000-02P2-02S-01HD | Specification |
| Current & Circuits | 2 * 10A; 1 * K-type thermocouple; 1 * HD Signal |
| Rating Voltage | 0 ~ 150 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 20mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~20rpm |
| Outer diameter | Ø56mm |
| Contact material | Precious metal |
| Housing material | Aluminium Alloy |
| Lead wire length | As customized |
| Rotary Torque | ≤0.3N*m |
Features
- High fidelity and low loss
- Transmit weak signal & compatibility with standard instruments
- Multi-channel integration capability
- Install easy & Free maintenance
Applications
- CNC machine
- Printing & marking equipment
- Tandem cold rolling mill
- Casting machine
- Automatic Feeding
Optional
- Circuits, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature

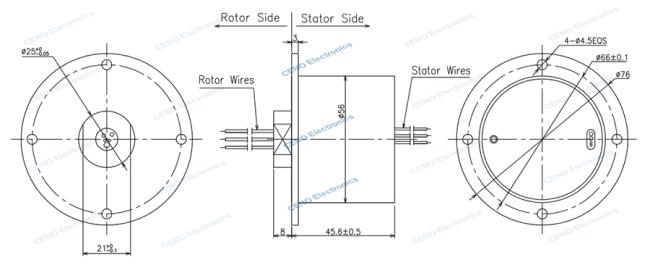

Outline Drawing
