PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm
PCB-style Pancake Slip Ring with electric power & CAN signal for robotic arm
PSCN020-02P1-02S-B is CENO pancake slip ring with 4 circuits electric power and signal. Due to it’s unique structure, pancake slip ring offer notable features, like ultra-thin and compact structure, and save axial space, it’s their most prominent advantage. Their low overall height makes them ideal for applications where axial space is limited but radial space requirements are minimal, such as the turntables and within robotic arm and joints. Fore more information about CENO slip ring please contact us.
Features
- Through hole to 500mm and optional
- Solve space constraints and achieve multifunctional high-density integrated
- Improve reliability in harsh environment and install easy
Applications
- Automatic machine
- Robot joints
- Precision CNC rotary table
- Indexing plates
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Inner / outer bore size
- Working speed & temperature
Specification
| PSCN020-02P1-02S-B Specification | |
| Current & Circuits | 2 circuits * 5A; 2 circuits * Canbus Signal |
| Rating Voltage | 0 ~ 100 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ (50rpm) |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP00 |
| Operating speed | 0~80rpm |
| Inner diameter | Ø20mm |
| Contact material | Gold to gold |
| Housing material | FR4 |
| Rotation way | Flange installation |

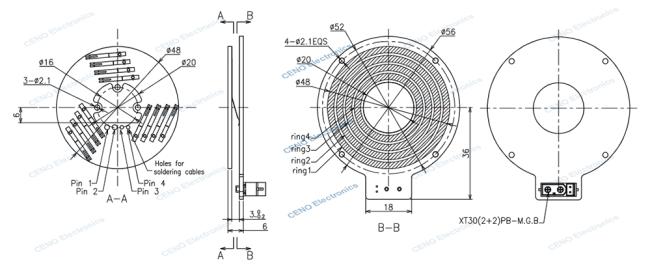

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
