2 Channels RF Rotary Joint combined Electric Power and Signal for Radar
2 Channels RF Rotary Joint combined Electric Power and Signal for Radar
ECN000-04P2-16S-02R is CENO integrate slip ring combine Power, weak electric signal and 2 channels radio frequency rotary joint. Which equipment in the equipment working in low temperature environment from -40°C to +85°C. Integrate slip ring often used in the rotating connection parts of equipment. Due to electromagnetic interference and space limitations, integrated slip ring have emerged, and providing a comprehensive solution. Information about how CENO slip ring can fit your application please contact us.
Specification
| ECN000-04P2-16S-02R Specification | ||
| Current & Circuits | 4 circuits * 10A; 1 * PE; 16 circuits * 2A | |
| Rating Voltage | 0 ~ 220 VAC/VDC | |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz | |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | |
| Contact resistance wave | ≤ 15mΩ | |
| Working temperature | -40°C~+85°C | |
| Working humidity | 60 %RH | |
| IP protection grade | IP54 | |
| Operating speed | 0~30rpm | |
| Outer diameter | Ø85mm | |
| Contact material | Precious Metal | |
| Housing material | Aluminium Alloy | |
| Service life | 5 million rotation | |
| Lead wire length | As customized | |
| RF Rotary Union | ||
| Channel | Channel 1 | Channel 2 |
| Connector type | SMA-f (50Ω) | SMA-f (50Ω) |
| Connector style | Style I | Style I |
| Frequency range | 0~4 GHz | 0~4 GHz |
| SWR (max.) | 1.2 | 1.35 |
| Insertion loss (max.) | 0.4dB | 0.5dB |
| Insertion loss wave (max.) | 0.05dB | 0.5dB |
Features
- Integrate design combine power signal and 2 channels RF joint
- Simply system structure & optimize wire & suit low temperature
- Install easy & Free maintenance
Applications
- Radar antenna
- High definition video
- Air traffic control radar
- Airborne radar
- Navigation
Optional
- Channels
- Frequency range
- Connector
- Protection grade
- Working speed & temperature

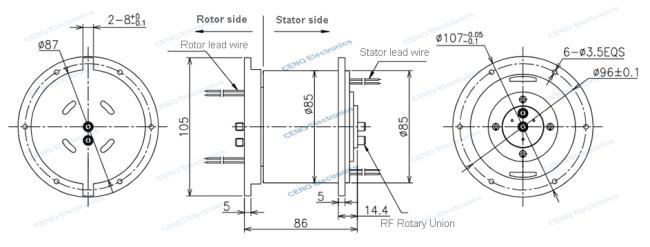

Outline drawing
