Industry Slip Ring with electric power and through hole 38mm and optional
Industry Slip Ring with electric power and through hole 38mm and optional
ECN038-06P3-IP54 is CENO through hole slip ring with electric power and through hole 38mm for industry. Hollow-shaft slip rings are specially designed slip rings featuring a central through-hole. This structural characteristic provides unique advantages in numerous applications by allowing other components—such as hydraulic/pneumatic lines, fiber optic cables, servo motor shafts, or other rotating shafts—to pass through the center. For more information please contact us.
Specification
| ECN038-06P3-IP54 Specification | |
| Current & Circuits | 6 circuits * 15A |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~80rpm |
| Inner diameter | Ø38mm |
| Outer diameter | Ø99mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Features
- Through hole 3mm-980mm optional
- Circuits 1 - 300 circuits are option
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Turntable testing machine
- Packing equipment
- Lithium equipment
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature

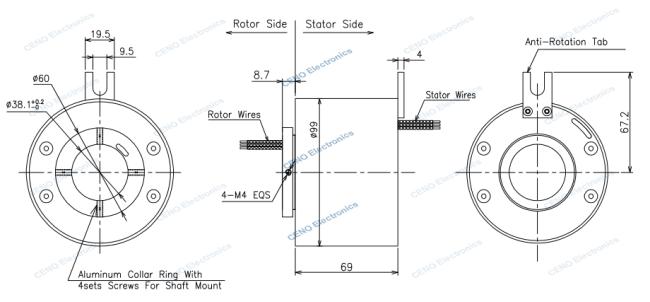

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
