ECN000-08P2-04F is CENO integrate slip ring combine electric power and 2 channels fiber optic rotary joint. CENO integrate slip ring series efficiently integrate forjs, RF and pneumatic/hydraulic rotary union with electric power slip ring, enabling the synchronous and stable transmission of optical signals, electrical power and control signals during continuous 360° rotation.Support multi-channel and multi-specification customization to meet your various complex operating.
Features
- Integrate power & forjs with compact structure and option
- Stable performance and realize variety functions
- Install easy & Free maintenance
Applications
- Robotics
- Material conveying system
- Radar system
- Video surveillance system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Channels, type,wavelength
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-08P2-04F Specification | ||
| Current & Circuits | 8 circuits * 10A | |
| Rating Voltage | 0 ~ 1200 VAC/VDC | |
| Dielectric strength | ≥1500VAC@50Hz | |
| Isolation resistance | ≥500MΩ@500VDC | |
| Contact resistance wave | ≤ 30mΩ | |
| Working temperature | -30°C~+80°C | |
| Working humidity | 60 %RH | |
| IP protection grade | IP51 | |
| Operating speed | 0~100rpm | |
| Outer diameter | Ø86mm | |
| Contact material | Precious Metal | |
| Housing material | Aluminium Alloy | |
| Installation | Flange installation | |
| Fiber Optic Rotary Joint | ||
| Fiber type | SM | MM |
| channels | 2 | 2 |
| Wave length | 1310/1550nm | 850/1300nm |
| Insertion loss | ≤3.5dB | ≤3.5dB |
| Return loss | ≤40dB | ≤40dB |
| Cable length | Rotor:3000mm; Stator:1500mm | |
| Connector type | FC/FC | |

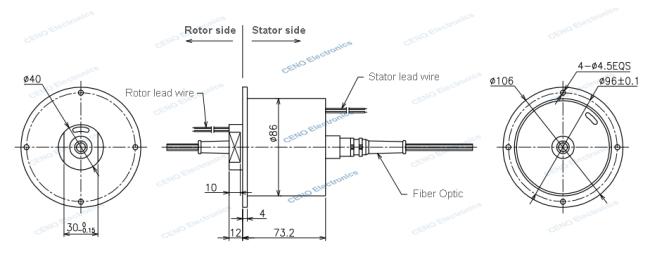

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
