Automobile machine Slip Ring with Electric Power and CANBUS signal
Automobile machine Slip Ring with Electric Power and CANBUS signal
ECN000-0250-04S-B is CENO CANBUS slip ring with circuits electric power and CANBUS signal for automobiles. CAN Bus is a serial communication protocol bus used for real-time applications and is one of the most widely used Profi-bus in the world, CENO have produced many kinds of signal slip rings, it can be integrate USB, Ethernet, Thermocouple, encoder, FORJs or RF as customer different requirements. For more information please contact us.
Specification
| ECN000-0250-04S-B Specification | |
| Current & Circuits | 2 circuits * 50A; 1 * CANBUS |
| Rating Voltage | 0 ~ 240 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz;≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø65mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size | As customized |
Features
- Flange design for easy installation
- Integrated CAN BUS Signal and data / signal type can be option
- Complete serial data transmit and high transmission rate
Applications
- Automatic machine
- Turntable testing machine
- Automobile component
- Manufacturing
- Electrical Mechanical
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Lead wire size & length
- Working speed & IP Grade

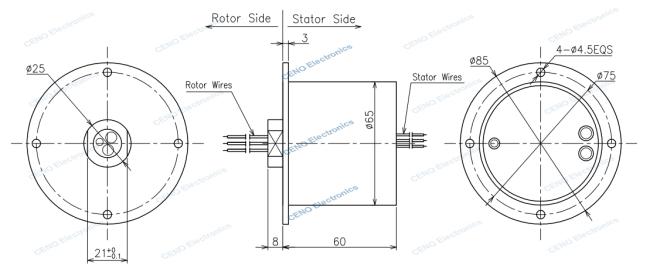

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
