ECN000-03P4-02F-IP65 is CENO integrate slip ring combine 3 circuits 20A power and 2 channels fiber optic rotary joints that suit for medical equipment, radar system and material conveying system etc. CENO integrate forjs slip rings is a customized non-standards series, designed for different special applications, supports multi-channel and multi-specification customization to meet various complex operating environments. For more information please contact us.
Features
- Integrate power signal and forjs and most parameters are optional
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Automatic machine
- Photo electric Pod
- Radar antenna
- Robotics
- Medical equipment
Optional
- Circuit, Voltage, Current
- Channels & fiber type
- Wavelength and signal type
- Protection grade & materials
- Working speed & temperature
Specification
| ECN000-03P4-02F-IP65 Specification | |
| Current & Circuits | 3 circuits * 20A |
| Rating Voltage | 0 ~ 1000 VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~100rpm |
| Outer diameter | Ø86mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
| Fiber Optic Rotary Joint | |
| Fiber type | SM (9/125um) |
| Fiber Channel | 2 |
| Wavelength | 1310~1550nm |
| Insertion Loss | < 3.5dB |
| Return Loss | >45dB |
| Peak power, max | 23dBm |
| Protection (IP Grade) | IP65 |
| Connector | LC/ LC |

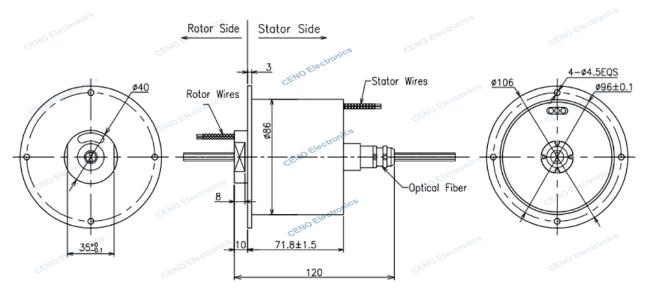

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
