ECN000-07P-26S-03EG is CENO low temperature slip ring combine circuits electric power and gigabit Ethernet. That’s "intelligent bridges" in modern mechatronic equipment, enabling reliable networked communication between rotating and stationary parts. Combining mature industrial bus technology with precise rotary connection technology, they are indispensable core components for high-end equipment to achieve automation, intelligence, and continuous rotational operation.
Features
- 10M-1000Mbit are option
- 1 - 300 circuits are option
- Stable performance & re-ageing
- Comply with MEC requirement
- Install easy & Free maintenance
Applications
- Automatic machine
- Smart home system
- Date center
- Crane
- Security & protection system
Optional
- Circuit, Voltage, Current
- Signals and data
- Structure and Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-07P-26S-03EG Specification | |
| Current & Circuits | 3 * 16A; 4 * 5A; 26 * Signal; 3 * 1000M Ethernet |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -40°C~+55°C; -50°C~+70°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~100rpm |
| Outer diameter | Ø119mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
| Installation | Flange installation |

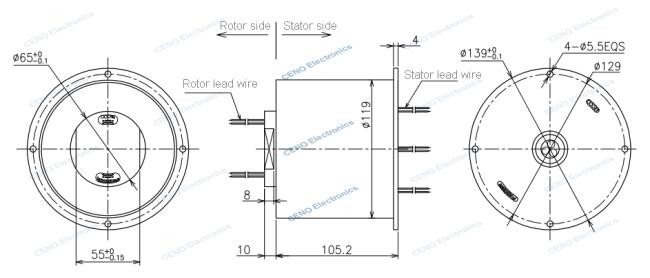

Outline drawing
|
