Industrial Ethernet Slip Ring with Through Hole Structure and Combined Electric Power for Stable Transmission
ECN012-06P2-01EM-A is CENO Through hole Slip Ring combined Electric Power and Ethernet Signal for Industry System. Industrial Ethernet refers to Ethernet technology applied within the field of industrial control. When designing Industrial Ethernet products, manufacturers must ensure that the selection of materials, structural durability, suitability for purpose, real-time performance, interoperability, reliability, noise immunity, and intrinsic safety all meet the specific requirements of industrial environments. For more information about how CENO slip ring can fit your application please contact us.

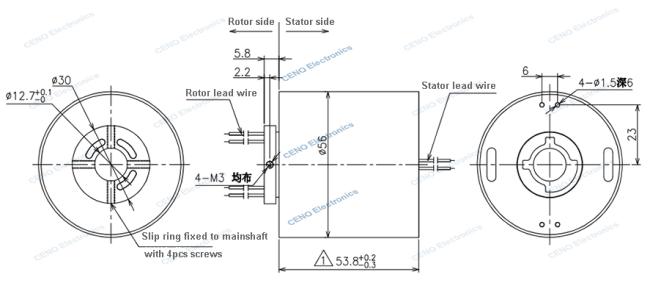

| ECN012-06P2-01EM-A Specification | |
| Current & Circuits | 6 * 10A; 1 * Ethernet |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø12.7mm |
| Outer diameter | Ø56mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length |
As customized |
|
|
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
- 24 hours,7days consultant service.
- Mass and customized production.
- Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
