Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic

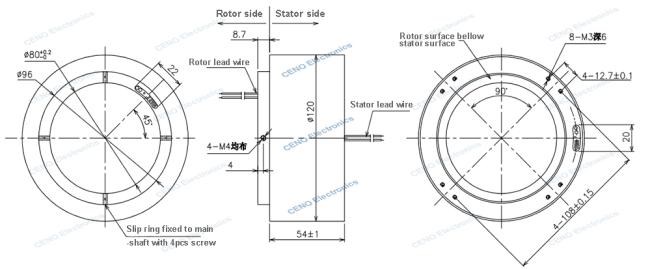

ECN080-02P3-08S is CENO Low temperature slip ring with through hole 80mm combine circuits electric power and signals. In order to achieve the corresponding level of high and low temperature resistance, these conductive slip rings are much stricter than ordinary conductive slip rings in the material selection of key components such as shells, bearings, and brush filaments. Of course, their mechanism design is also different from ordinary slip rings. For more information please contact us
|
ECN080-02P3-08S Specification |
|
|
Current & Circuits |
2 circuits * 15A; 8 circuits * Signal |
|
Rating Voltage |
0 ~ 48 VAC/VDC |
|
Dielectric strength |
≥500VAC@50Hz |
|
Isolation resistance |
≥500MΩ@500VDC |
|
Contact resistance wave |
≤ 30mΩ |
|
Working temperature |
-40°C~+80°C |
|
Working humidity |
60 %RH |
|
IP protection grade |
IP54 |
|
Operating speed |
0~60rpm |
|
Inner diameter |
Ø180mm |
|
Contact material |
Precious Metal |
|
Housing material |
Aluminium Alloy |
|
Lead wire size & length |
Customized |
- Flange design for easy installation
- Circuits 1 - 300 circuits are optional
- Can integrate signals as RF, fiber optics, HDMI, USB, Hydraulic/Pneumatic
- Easy installation & free maintenance
- Automatic machine
- Automotive Test Bench
- Turntable testing machine
- Industry robotic
- Medical Equipment
- Circuit, Voltage, Current
- Wire size, length & connector
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
CENO is a technological company in the slip ring field engaged in research and development, manufacturing, and sales. We have advanced equipment and high precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.
ISO9001, CE, RoHS, UL, Explosion-proof
Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training.
- 24 hours, 7 days consultant service
- Mass and customized production
- Solution offering for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
