Opto-Electric Hybrid Slip Ring 1 Fiber 1 RF Coax 360° Rotation 6000 rpm
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
ECN000-01S-01F-B is CENO integrated opto-electric hybrid slip ring combines 1 fiber channel and 1 RF coaxial channel in a single unit, enabling infinite 360° continuous rotation while transmitting optical high-speed data and radio frequency signals simultaneously. It adopts precision rotary coupling structure with fully shielded black anodized aluminum housing, effectively isolating electromagnetic interference. Equipped with standard ST fiber pigtail and coaxial signal wire on stationary flange side, rotary rotor end with protective cap, supporting stable high-speed rotation with ultra-low signal attenuation, ideal for rotary equipment requiring mixed optical and RF signal transmission without cable twisting damage.
Features
- Infinite rotation
- Low insertion loss
- EMI shielding
- Compact integration
- Stable signal
Applications
- Vision turntable
- RF test bench
- Medical imaging
- Opto pod gimbal
- Industrial inspection
Optional
- Fiber connector
- Rotating wiring
- Speed upgrade
- IP enclosure
- Custom channels
Specification
|
ECN000-01S-01F-B |
Specification |
|
Protection Rating |
IP51 |
|
Operating Humidity |
Below 60% RH |
|
Operating Temperature |
-40°C ~ +80°C |
|
Cable Specification |
Coaxial cable RG178 |
|
Operating Voltage |
0~24 VAC/VDC |
|
Number of Circuits/Current |
1 channel × coaxial signal |
|
Dielectric Strength |
≥500 VAC @ 50 Hz between circuits |
|
Insulation Resistance |
≥500 MΩ @ 500 VDC |
|
Contact Resistance Fluctuation Value |
≤30 mΩ (at 50 rpm) |
|
Operating Speed |
0～6000 rpm |
|
Cable Lengths |
Rotor side: 60 mm; Stator side: 1000 mm |
|
Contact Material |
Precious metal |
|
Housing Material |
Aluminum alloy |

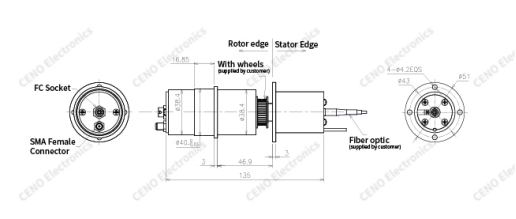

Outline drawing
CENO Power/Signal + Fiber Opticrotary joint product series
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
