IP65 Capsule Slip Ring OD Φ22mm Used For Wood Working Machine

This is CENO capsule slip ring with IP65 ,high IP protection grade,low torque smooth rotation. its outer diameter is 22mm compact design with precious metals contact material, it is used for wood working machine. CENO design and manufacture perfect capsule slip rings and provide rotary solutions for your system.

Specification

ACN22A-04P3		Picture
Current	4*15A
Voltage	0~12 VAC/VDC
Electrical noise	Max 35m Ω
Dielectric strength	≥500V@50Hz
Insulation resistance	100MΩ@500VDC
Operating speed	0-300 rpm
Contact material	precious metals
OD	Φ22mm
Operating temperature	-20~+60℃
IP protection grade	IP65

Applications

• Wood working machine
• Automatic arm
• Production line

Features

• Continuous transmission of signal or data under 360° unrestrained rotation
• Less noise, long life
• Low torque, smooth rotation

Optional

• Circuit number
• Lead wire length
• Operating speed
• IP protection grade

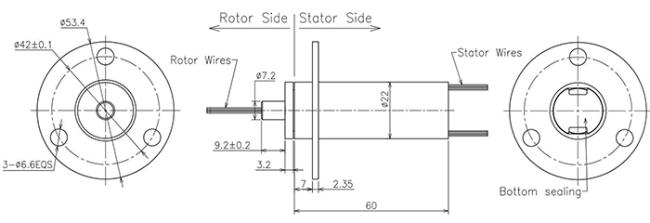

Outline drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
