16 Channel 850-1550nm 300rpm Rotary Joint Electrical Connector
16 Channel Fiber Optic Rotary Joint For Antenna System Application
For more than 10 years, CENO has focused on the rotary interface needs of the energy industries.
Today, our fiber optic rotary joints (FORJs) are recognized around the world for innovative performance and reliability in harsh marine environments.We design for demanding conditions. Rigorous testing of every FORJ is performed in our own environmental testing chambers and the facilities of testing specialists. Standard features, such as connector interfaces that allow for easy replacement of damaged pigtails, are designed to minimize down time.
Specification
| FCN0231G-67A-16 | |
| Fiber type | SM/MM |
| Fiber channel | 16 |
| Wave length | 850-1550nm |
| Insertion loss,MAX | < 3.5dB |
| Insertion loss,WOW | < 1.5dB |
| Return loss | ≥40dB |
| Rotation speed,MAX | 300rpm |
| Power rating | ≤23dBm |
| Operation temperature |
-20℃～+60℃ ( -40℃～+85℃ optional ) |
| Storage temperature | -45℃～+85℃ |
| IP grade | IP54 (IP65,IP67 optional) |
Applications
- Antenna system
- Simulator tester
- Robot arm
- Marine Winch
Optional
- Fiber channel number
- Connector type
- Fiber type
- Fiber length
Features
- Transfers power, as well as analog and digital signals
- Compatible with data bus protocols,compact packaging
- Fiber brush technology provides long life and maintenance free operation

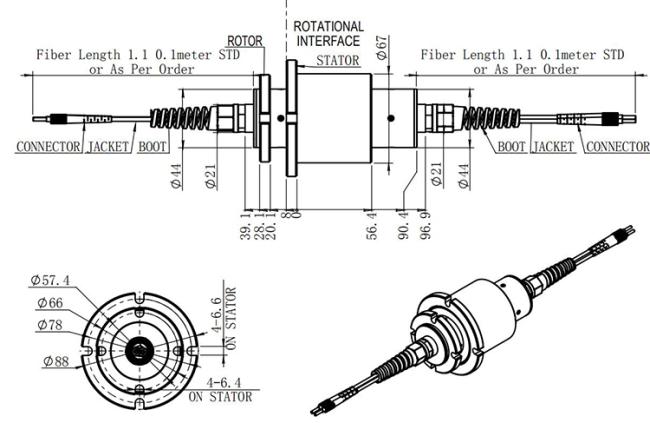

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
