ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring
Dust Proof Rotary Joint High Protection Housing
This is a highly protective and dust-proof custom slip ring, mainly used in industrial fields, such as food machinery.
The product structure is different from other ordinary slip rings. The terminals replace the wires, which is convenient to connect. At the same time, it strengthens the protection of the shell and provides a higher degree of protection IP65. It is suitable for special working conditions. Rotation in any direction has stood the test of long-term complex field practice.
Specification
| ECN000-11P-01PE | |
| Current | 11*25A,1*PE |
| Voltage | 0~415VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength |
1500V@50Hz(power) 500V@50Hz(signal) |
| Insulation resistance |
500MΩ@500VDC(power) 100MΩ@100VDC(power) |
| Operating speed | 0-30 rpm |
| Contact material | precious metals |
| Operating temperature | -20~+60℃ |
| Housing material | aluminum alloy |
| IP protection grade | IP65 |
Application
- Seaport machinery
- Platform crane
- Propulsion
- Cable reel
Features
- Waterproof and dust proof
- The terminals replace the wires to easy connection
- Stable performance and excellent quality
Optional
- Circuit number
- Current rating
- Installation way
- IP protection grade

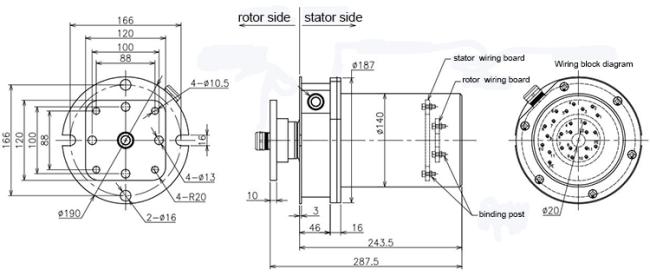

Outline Drawing
