RJ45 Connector IP55 250rpm 100M Ethernet Capsule Slip Ring
Capsule Slip Ring Combine 100M Ethernet Only
This is compact size Ethernet slip ring, transmitting 100M Ethernet, it is designed for high definition video surveillance or serial communication application.Stable data transmission,no packet loss ,low return loss,low error rate,super high SNR.
According to the standard network cable connection mode, provide RJ45 connector directly pluggable.
Specification
| ACN22A-12-01EM | |
| Current | 1*100M Ethernet |
| Voltage | 0~24VAC/VDC |
| Electrical noise | ≤10mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz(signal) |
| Insulation resistance | ≥500MΩ@500VDC(signal) |
| Operating speed | 0-250 rpm |
| Contact material | precious metals |
| Operating temperature | -20~+80℃ |
| IP protection grade | IP55 |
| Housing material | Aluminum alloy |
Optional
- Signal type
- Circuit number
- Current rating
- Connector type
- IP protection grade
Features
- Stable data transmission,no packet loss ,low return loss,
- Low error rate ,super high SNR
- The solution can combine hybrid of power, digital signal,fiber optic,gas-liquid
Applications
- High definition video surveillance
- Serial communication
- Industrial automatic control

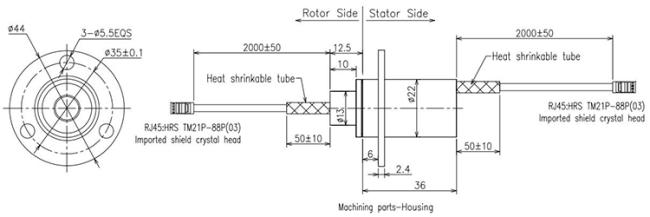

Outline Drawing
