1000VAC 10A 260mm Copper Graphite High Voltage Slip Ring
Specification
| Current | 2*10A |
| Voltage | 1000VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥2000V@50Hz |
| Insulation resistance | ≥1000MΩ@500VDC |
| Contact material | Copper graphite |
| Operating speed | 0~10rpm |
| Operating temperature | -35°C~+80°C |
| IP protection grade | IP54 |
| Through hole size | 260 mm |
Features
- Safely current carrying capacity
- Long lifespan, easy maintenance
- High protection, good weather resistance
- Various signal type could be integrated
Applications
- Safely current carrying capacity
- Long lifespan, easy maintenance
- High protection, good weather resistance
- Various signal type could be integrated
Optional
- Through hole size
- Current rating
- Signal type
- IP protection grade

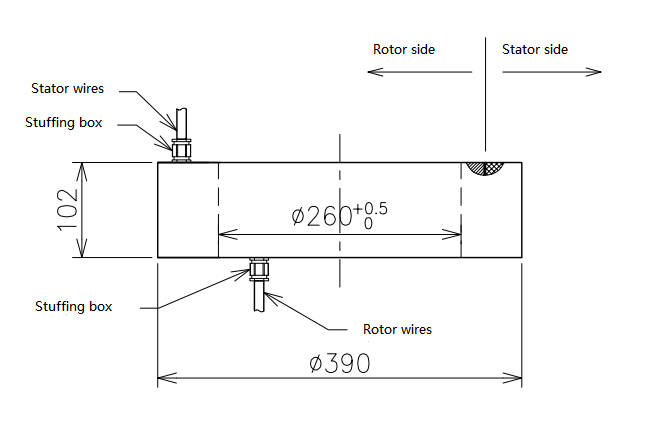

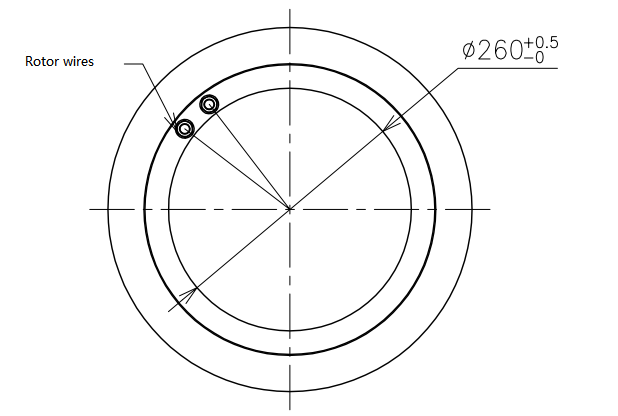

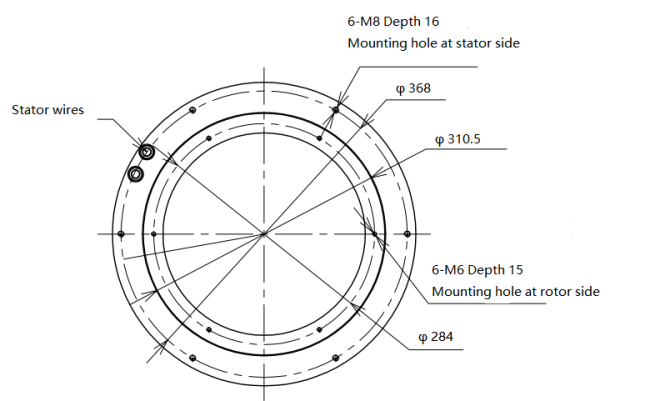

Outline Drawing
