ECN060-24P1 0~380VDC 60mm 300rpm Through Hole Slip Ring
ECN060-24P1 through hole size 60 mm ,24*5A
CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole size are 12.7mm, 25.4mm, 38.1mm, 50mm, 60mm,70mm, 80mm, 100mm .and all other size are capable to be customized.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings .
Specification
| ECN060-24P1 | |
| Rings | 24*5A |
| Voltage | 0~380VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |

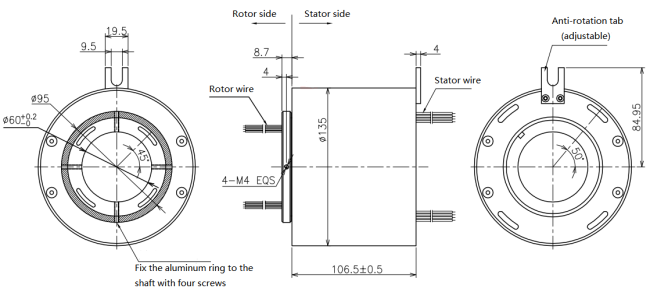

| Through hole size | 60 mm |
Features
- Center hole is easy to install.
- As well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- May work under water 100m,anti-corrosion
Applications
- For marine
- For offshore oil rigs
- Seaport machine
Optional
- Through hole size
- Current rating
- Integrate various signal
- IP protection grade
