Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring
Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring
Hollow shaft slip ring with aluminium alloy housing ,inner diameter 38.1 mm
Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.The product named ECN038-24P3-12S with through bore size 38.1mm.CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.
Feature Of Through Hole Slip Ring
Transmit power and signal
The power and signal are mixed transmitted, and the signal categories are as follows:
Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
HD video: SDI, LVDS, etc.
Serial communication: RS232, RS485, RS422, etc.
Universal Serial Bus: USB2.0
Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
Long service life, maintenance-free
Easy to install
Specification of ECN038-24P3-12S
| Circuits | 24*15A,12*signal |
| Voltage | 0~380VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance |
≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
| Operating speed | 0-150 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy sandblasted black oxide |
| IP protection grade | IP54 |
| Through hole size | 38.1 mm |
Advantages
- Very low electric noise
- Anti-jamming ,very low cost
- Very low contact resistance (Less than 1mΩ)
- No maintenance and better reliability than traditional sling rings
Applications
- Medical equipment
- Wind power equipment
- Test equipment
- Display equipment
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Ship offshore equipment
- Construction machinery
Optional
- Circuit number
- Current rating
- Signal type
- IP protection grade
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

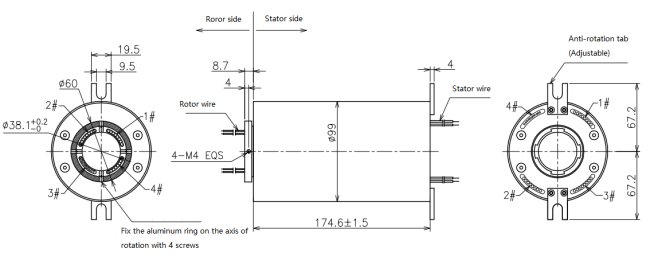

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
