Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring
Radio Frequency Rotary Joint Slip Ring with 1 channel coaxial cable ,aluminium housing,used for satellite communication.
It’s a solid RF Coaxial rotary joint,also named high frequency rotary joint, wave guide rotary joint.
The channel coaxial rotary joint is conducive to reducing the size of the structure and processing,
and is conducive to stable rotation. It meets the microwave transmission in a wide frequency band
with excellent performance indicators, including the rotating section and the fixed end.RF rotary
joint with compact size, and stable rotating performance with RG 178 coaxial cable and aluminium
housing.Typical application including radar antennas,research & development, telecommunication
networks,military industry.
Radio frequency characteristics
| ECN000-01S | Specification |
| Circuits | 1*RG178 coax cable |
| Voltage | 240VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥100MΩ@100VDC |
| Operating speed | 0~500 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Interface type | SMA connector |
| Frequency range | 100M |
| Insertion loss | <1dB |
| VSWR | <1.5 |
Features
- Stable performance and high reliability
- Integrated RF rotary joint
- Apply to RF signal and high data speed rate transmission
- Easy maintenance
- Anti-interference ability
- Compact structure
- With SMA connector
- 1 channel coaxial cable
Applications
- Simulation tester
- Antenna system
- Traffic control system
- High definition network
- Satellite communication
- Military industry
- Radar antennas
Optional
- Circuits number
- Frequency range
- Interface type
- IP protection grade

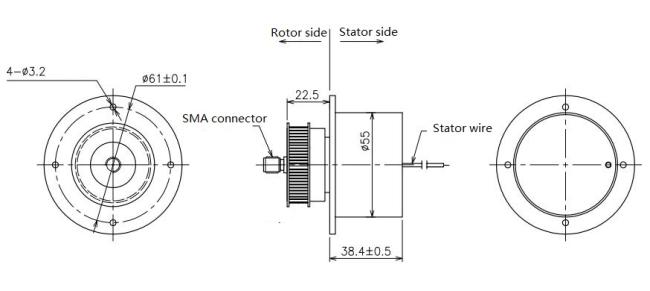

Outline Drawing
