Hollow Shaft Rotary Joint 300rpm Through Hole Slip Ring 38.1mm Inner Hole
Hollow Shaft Rotary Joint 300rpm Through Hole Slip Ring 38.1mm Inner Hole
38.1 mm inner hole hollow shaft rotary joint slip ring with black aluminium housing working speed 300 rpm,for turntable.
Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform.It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside port rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. Through bore size and IP protection grade can be optional .Typical application including packaging machine, Military industry , marine industrial equipment,automatic winding machine,lithium battery equipment, industrial automation equipment.
It’s also can integrate various signals such as fiber optic,HDMI,USB, Ethernet, Canbus , servo signals.
Specification
| ECN038-12P3 | Specification |
| Circuits & Current | 12*15A |
| Voltage | 380VAC / 24VAC |
| Electrical noise | Max 70mΩ (50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | 38.1 mm |
| Cable length | 3000mm / 3000mm |
Features
- Low torque, smooth rotation
- 360 degree connection
- Easy to install
- Low friction and torque
- Stable power performance
- Working speed 300 rpm
- Compact size
Applications
- Radar system
- Marine applications
- Display equipment
- Lithium battery equipment
- Medical machine
- Rotary table
- Cable reels
- CCTV applications
- Wrapping machines
Optional
- Through hole size
- Various signal integrate
- Circuits number
- IP protection grade
- Cable length

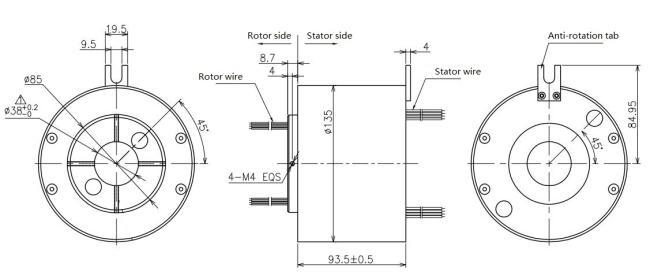

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
