Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power
Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power
CENO gold contacts material through hole slip ring with 32 rings power ,aluminium housing,inner size 20mm,for turntable.
This is a 20mm through hole, 32 wires of power slip ring, the whole body use aluminium alloy material, the contact materials is gold to gold ,it’s with high-performance and longer life service.it’s also can integrate various of signal such as Ethernet ,Canbus,RS485/232/422 etc.Typical application have radar system,medical machine ,packaging machine,turntable ,cable reels etc.We are professional on shielding technology, anti-interference for line to line.We not only provide products, but also provide solutions! According to different requirements of customers for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.
Specification
| ECN020-32P | Specification |
| Circuits & Current | 6*10A,22*5A,4*2A |
| Voltage | 0-410VAC/VDC |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-200 rpm |
| Contact material | Gold-gold |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | 20 mm |
| Working temperature | -20°C ~ +60°C |
| Cable length | 1700mm / 2200mm |
Features
- Low torque, smooth rotation
- 360 degree connection
- Easy to install
- With gold contacts
- Stable power performance
- Shaft-mounted
- Compact size
Applications
- Beer machine
- Radar system
- Marine applications
- Display equipment
- Lithium battery equipment
- Medical machine
- Rotary table
- Cable reels
- Packaging machine
Optional
- Through hole size
- Various signal integrate
- Circuits number
- IP protection grade
- Cable length

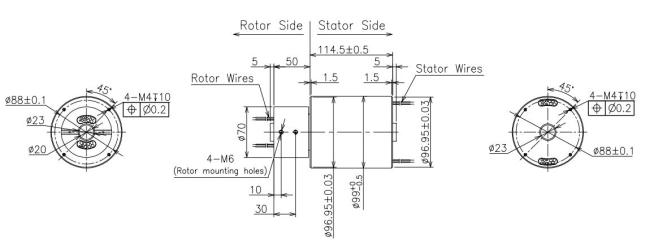

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
