Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing
Inner Bore 38.1mm Food Industry Slip Ring With Aluminium Housing
Inner bore 38.1mm Ethernet slip ring with aluminium housing used for food industry ,packaging machine,2*1000M Ethernet.
ECN038-06P2-02EG-IP64 is a waterproof slip ring with IP grade IP64,integrated power and 2 groups of 1000M Ethernet slip ring .CENO slip rings for construction machinery have experienced incessant improvement for years. Also with the accumulated experience and technology in design and manufacturing, CENO launched an excellent dedicated slip ring for cranes. In comply with the industrial features; the slip ring operates well in its precise location of its angular rings. Moreover, with a large lifting capacity, the part is able to accomplish 360° rotating transmission with little transmission loss and no data package loss. One point is that its IP68 high protection level supports outdoor working conditions very well.Typical application such as food industry,pipeline equipment,medical mahine,any special application that can use the slip ring please feel free to contact with us ,we can customize the best solution for you .
Specification
| ECN038-06P2-02EG-IP64 | Specification |
| Circuits & Current | 6*10A,2*1000M Ethernet |
| Voltage | 0~220VAC/VDC |
| Dielectric strength |
≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
| Operating speed | 0-60 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP64 |
| Through hole size | 38.1 mm |
| Working temperature | -20°C ~ +60°C |
Features
- 360 rotating transmission
- Working underwater 1000M
- Integrated power and signal
- Inner bore 38.1mm
Applications
- Radar system
- Construction machinery
- Ship offshore equipment
- Display equipment
- Amusement equipment
- Medical equipment
Optional
- Through hole size
- Current & ring numbers
- Signal type
- IP protection grade

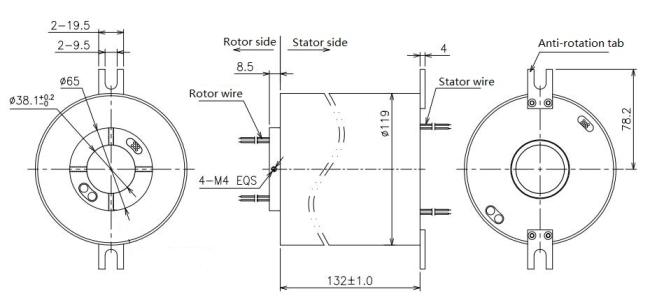

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
