ECN Series 300 Rpm 38.1mm Through Hole Slip Ring Rotary Electrical Joint
ECN Series 300 Rpm 38.1mm Through Hole Slip Ring Rotary Electrical Joint
ECN series through bore slip ring with 38.1mm inner bore,300 rpm working speed,black aluminum alloy housing.0~380VAC/VDC.
A slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operation and eliminating damage prone wires.Through hole slip ring also named hollow shaft .The ECN038-04P-12P1 provides an economical, readily available solution when a compact through bore configuration is required. This unit provides a 38.1mm through bore for routing hydraulic or pneumatic lines and a compact 99mm outside diameter for minimal space applications. There have 4 lines for current 16A,12 lines for 5A.CENO can provide such kind of through bore slip ring with inner bore from 3mm to 980mm,any special requirements just contact with us.
CENO slip rings with compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life.Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems.
Specification
| ECN038-04P-12P1 | Specification |
| Circuits & Current | 4*16A,12*5A |
| Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥1000MΩ@500VDC |
| Electrical noise | ≤10mΩ (50 rpm) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| IP grade | IP44 |
| Inner hole size | 38.1mm |
Features
- Shaft-mounted
- Inner bore 38.1mm
- Speed up to 500 rpm
- Precious metal contacts
- Compact size
- Long lifetime
Applications
- Process control equipment
- Exhibit Display machinery
- Cable reels
- Wrapping machinery
- Port machinery
- Drilling platform
- Oil well
Optional
- Through hole size
- Current & ring numbers
- Signal type
- IP protection grade
- Contacts material

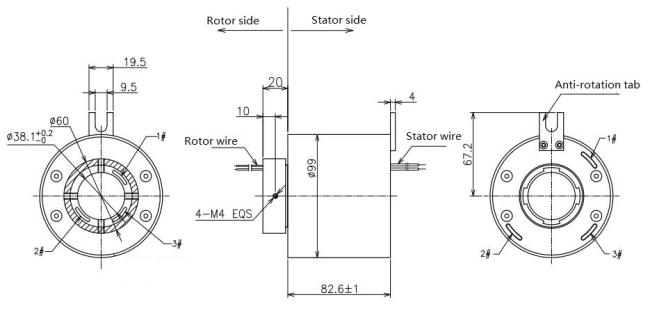

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
