Sewage Treatment 130mm Optical Rotary Joint Signal Slip Ring Voltage 400 VAC
sewage treatment 130mm optical rotary joint Signal Slip Ring Voltage 400 VAC
130mm large inner hole size rotary joint for power & signal transmission ,voltage 400 VAC/VDC,used for sewage treatment.
Large size slip ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.The contact of this series swivel adopts fiber brush technology which make contacts on each ring are multiple points to ensure the safe contact between rings and brushes.Life of slip ring depends on the working environment and condition,such as operation speed and continual working time.Welcome to contact us with your special demands.
Specification
| ECN130-19P-06S | Specification |
| Circuits & Current |
6*2A,2*PE,3*8A,4*2A 2*PT100 signal,4*0.5A |
| Electrical noise | Max 70mΩ (50 rpm) |
| Dielectric strength |
≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@300VDC (signal) |
| Operating speed | 0-50 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| Voltage | 0-400 VAC/VDC |
| IP protection grade | IP51 |
| Working temperature | -20°C ~ +60°C |
| Through bore size | 130 mm |
Features
- Through bore size 130mm
- High reliability,long life
- Customized product size
- Long lifetime
Applications
- Sewage treatment
- Material transfer equipment
- Automation equipment
- Food industry
- Amusement Equipment
Optional
- Through hole size
- Current & ring numbers
- Signal type
- IP protection grade
- Contacts material

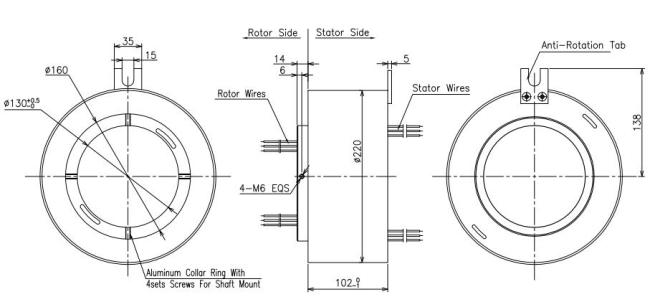

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
