Electrical through bore slip ring is a rotating assembly used to transfer power, signal, control circuits or data
The ECN series electrical through bore slip ring is a rotating assembly used to transfer power, signal, control circuits or data (analog / digital) from stationary inlets to rotating outlets.CENO ECN series slip rings feature 25.4mm ,38.1mm,50mm,60mm,70mm,80mm inner bore size etc,. It’s also can customized according to customer’s demands ,the inner bore size can be customized from 3mm to 980mm .Through bore for shaft mounting and incorporate low-wear, fiber brush contacts that do not require lubrication producing virtually no wear debris.ECN050-05P-10S with working speed 300 rpm,inner bore 50mm, integrated 5 rings of power & 10 rings of signal .Please contact with CENO if you have any question about slip ring,our professional R&D engineer will provide you with best solution.
Specification
| ECN050-05P-10S | Specification |
| Circuits & Current | 5*6A,10*signal |
| Voltage | 0~380VAC/VDC |
| Dielectric strength |
≥500V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
| Working temperature | -20℃ ~ +60℃ |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| IP grade | IP54 |
| Inner hole size | 50 mm |
Features
- Through bore size 50mm
- High-performance
- Smooth rotation
- Power integrated signal
- Compact design
- Shaft mounting
Applications
- Medical machine
- Oil and gas
- Heavy equipment
- Machine tool
- Packaging machinery
- Marine platform
Optional
- Through hole size
- Current & ring numbers
- Signal type
- IP protection grade
- Contacts material

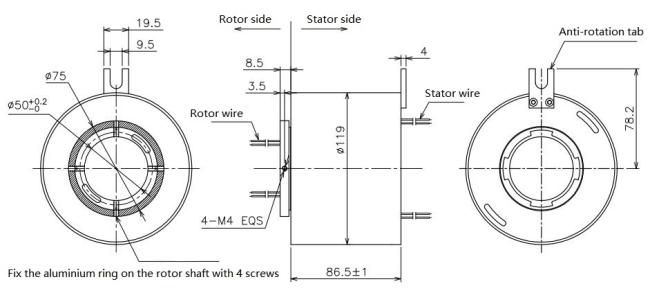

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
