25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing
25.4 Mm Inner Bore Ethernet Rotary Joint 300rpm Aluminium Housing
Ethernet slip ring connector with 1000M rate,working speed 200rpm, flange installation,used for oil industry application,any special requirements please feel free contact with us .
CENO designed customized Ethernet slip ring for automatic machine & automotive applications, we can make 100M Ethernet and 1000M Ethernet slip ring, with stable transmission, no signal crosstalk.With professional experienced R&D designers,for make customized slip ring per different types of demands, product have high quality and long working lifespan,the Ethernet slip ring can be combined with electric power,other type of signal,datas,gas,liquid etc.Optional It can provide high speed,long life,high protection slip ring customization, and integrate a variety of signals.ACN-05P-01EG provides smooth running, higher design precision, lower torque, lower contact resistance,and lower electrical noise. CENO also can provide different customized solutions according to customer’s requirements.CENO can design different through bore size from 3mm to 980mm according to customer’s requirements.
Specification
| ACN-05P-01EG | Specification |
| Circuits & Current | 3*20A,8*2A,1*1000M Ethernet |
| Voltage | 110VAC/VDC |
| Dielectric strength | ≥200V@50Hz (power) ≥100V@50Hz (signal) |
| Insulation resistance | ≥100MΩ@200VDC (power) ≥100MΩ@100VDC (signal) |
| Electrical noise | ≤ 35mΩ (50 rpm) |
| Operating speed | 0-200 rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| IP grade | IP51 |
| Working temperature | -20°C~+60°C |
Features
- Waterproof grade IP51
- Power intagrated signal
- Flange installation
- 0~200rpm working speed
- High transmit performance
Applications
- Test equipment
- Radar antennas
- Submarine robots
- Oil industry applications
- Automotive applications
Optional
- Circuits number
- IP protection grade
- Through bore size
- Signal type & current rating

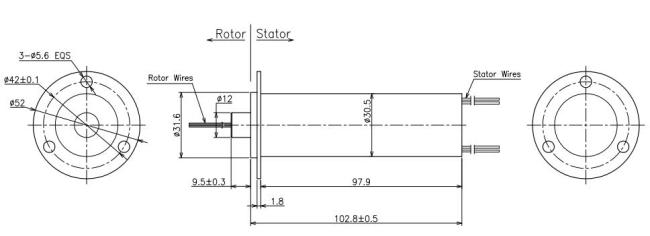

Outline Drawing
