108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment
108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment
Large inner bore size industrial slip ring with 108mm bore,working temperature -40°C ~ +85°C,used for sewage treatment,military applications,packaging machine etc,.
CENO can design the through bore slip ring reach up to 980mm inner bore.This kind of large bore slip rings represent the union of manufacturing processes and technologies that enable us to offer large & high volume slip rings with advanced features that are cost effective.ECN108-06P2-08P1 with inner bore 108mm,out diameter is 160mm,working temperature range from -40°C~+85°C.it’s also can integrate various of signal such as Canbus,Ethernet,USB,fiber optic etc.Also with high protection grade is widely used in sewage treatment,large material transfer equipment,large industary equipment & other systems. we will provide the best solution to you asap.
Specification
| ECN108-06P2-08P1 Specification | |
| Circuits & Current | 6*10A,8*5A |
| Voltage | 220VAC/24VDC |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-60 rpm |
| Electrical noise | ≤30mΩ (50 rpm) |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP51 |
| Through hole size | 108 mm |
| Working temperature | -40°C ~ +85°C |
| Cable length | 1000mm on both sides |
Features
- Stable transmission
- Long lifetime
- Smooth running
- Compact structure
Applications
- Sewage treatment
- Military applications
- Packaging machine
- Agricultural machinery
Optional
- Installation way
- Current & ring numbers
- Signal type
- IP protection grade
- Through bore size

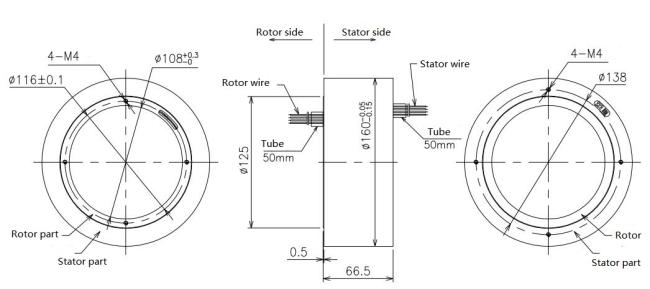

Outline drawing:
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
