Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector
Low Torque 300 rpm Fiber Optic Rotary Joint with STFC SC Connector
Low torque fiber optic rotary joint with 2 to 6 channels optional,wavelength 850/1550 nm,connector ST,FC,SC are optional.Widely used for medical equipment,packaging machine,inspection instrument,rotary tables etc.
Fiber optic rotary joint,also known as fiber optic slip ring,fiber optic rotary connector,optical hinges,etc.This slip ring adopts optical fiber as media for transmitting data,provide the best technical solution for elements of system to transmit data when rotating.It is especially suitable for equipments that require unlimited, continuous or intermittent rotation and transmit large capacity of data and signals from stationary position to rotary position,optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel,also can integrated power & other signals.This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
Specification
| FCN0204G-67R | Specification |
| Fiber channel | 2-6 channels optional |
| Wavelength | 850nm -1550nm (SM/MM) |
| Insertion loss | <3.5dB |
| Insertion loss fluctuation | ＜1.5dB |
| Pulling force | ≤12N |
| Operating speed | 0-300 rpm |
| Return loss | ≥40dB |
| Weight | 1400 g |
| Housing material | Stainless steel |
| IP grade | IP54 |
| Vibration shock standard | GJB150 |
| Connector | ST,FC,SC |
Features
-
Working speed 300 rpm
-
Long lifetime
-
Smooth rotation,low torque
-
Stable transmition
Applications
- Military applications
- Radar antennas
- Offshore applications
- Harsh environments
Optional
- Circuits number
- IP protection grade
- Fiber optic type
- Signal type & current rating
- Wavelength

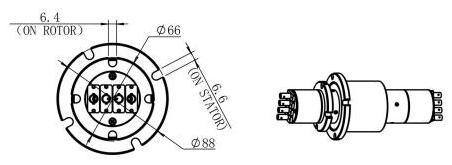

Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
