Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing
Wind Power 300rpm Signal Through Hole Slip Ring 25.4mm Aluminium Housing
Signal through hole slip ring 25.4mm hole,0~380V,300rpm working speed,aluminium housing,used for wind power,cable reel,military industrial and process control equipments.
In the industry automation processing,especially in servo systems and factory room net works,it need transmission more signals,data,Ethernet to control the motion of the machinery.we use special design technology,gold to gold contact to make sure the high quality transmission of the data,power.We also can use equipment testing the Ethernet,return loose,insert loose etc performance.To make the production in process more easy and correct.ECN025-16S provides an economical,readily available solution when a compact through bore configuration is required.This unit provides a 25.4mm through bore for 16 rings signal transmission and a compact 86mm outside diameter for minimal space applications.
Specification
| ECN025-16S Specification | |
| Rings | 16*signal |
| Voltage | 0~380VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| Working temperature | -20℃~+60℃ |
| IP protection grade | IP51 |
| Through hole size | 25.4mm |
Features
- Transmit signal
- Smooth rotation
- 25.4mm inner bore
- Smooth rotation
-
High performance
-
Compact structure
Applications
- Automotive applications
- Medical machine
- Industry equipment
- Display table
- Packaging machine
- Medical equipment
- Rotation tab
- Process control equipment
- Military industrial
- Rotary index tables
Optional
- Through hole size
- Current rating
- Signal type
- IP protection grade

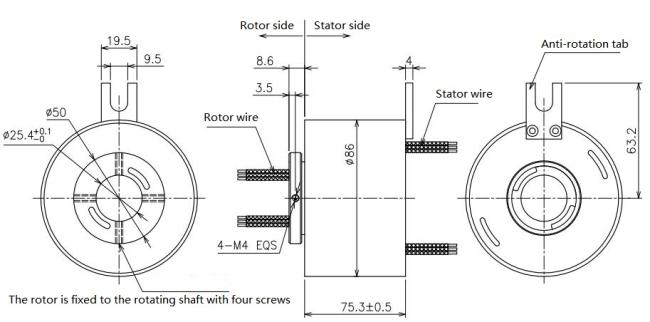

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
