Industrial Hybrid Swivel High Current Slip Ring IP51 5RPM
Price:
negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
CENO
Product Description
BHCN-C-36P-05EG-20F Hybrid swivel
High current rating slip ring and multichannel fiber optic rotary joint are integrated in this model.It is
designed as free maintenance type.In power channel,current rating up to 250A.Beside power
channel,there are gigabit ethernet channel as well.The crosstalk between the high power channel and
signal channel are totally avoid in slip ring.The fiber optic rotary channel number up to 20.All channels are
single mode and with LC connector on both sides.
Specification
|
BHCN-C-36P-05EG-20F |
|
| Circuits & Current | 11x250A, 25x10A, 5xGigabit, 20x Fiber optic |
| Voltage | 0~380VAC |
| Electrical noise | Max 30mΩ (50rpm) |
| Dielectric strength |
≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@300VDC (power) ≥100MΩ@300VDC (signal) |
| Operating speed | 0~5 rpm |
| Contact material | Precious metal,carbon brush |
| Housing material | Stainless steel,Aluminium alloy |
| IP protection grade | IP51 |

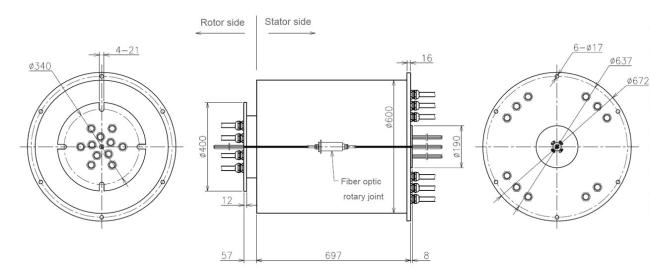

Outline drawing
