Speed 250rpm Industry Slip Ring 8x10A 16xsignal Installation Way Flange
Industry Slip Rings Speed 250rpm 8*10A; 16*signal Installation way Flange
This industry Slip rings is CENO’s customized production, It can rotate with speed 250rpm and temperature-25~+80℃, ECN slip rings adopts fiber brush technology, maintenance-free, multi-point contact, low noise, long life, complete product specifications, always use on cable reel, wind driven generator, photo camera, light industry and so on. CENO’s industry slip ring work with high quality and process stability, Install flange fixed on Rotor side.
Features
Low torque,low loss
Power integrated signal
Working speed 250rpm
Stable transmission
Applications
Radar antenna
Turret
Periscope
Electro-optic sensor universal joint
Optional
Circuit number
Installation ways
Flange type
Multisync
Specification
|
ECN000-08P2-16S |
Specification |
| Circuit & Current | 8*10A; 16*signal |
| Rating voltage | 0~380VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Insulation Resistance | 500MΩ@500VDC |
| Contact Resistance fluctuation | ≤30mΩ (50rpm) |
| Working temperature | -25~+80℃ |
| Working Humidity | ≤60% |
| Working speed | 0~250rpm |
| Contact material | Precious material |
| Housing material | Aluminum alloy sandblasting oxide black |
| Installation way |
Rotor end fixed on Flange |
| Protection grade | IP51 |

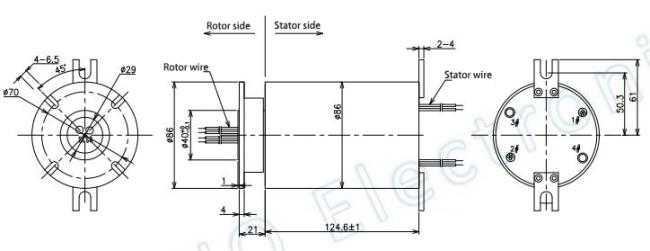

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
